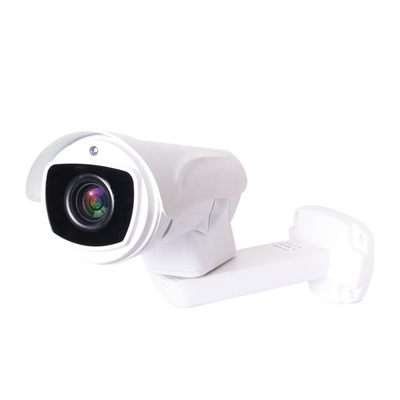

5MP Motion Detection IP CCTV Video Surveillance System Bullet PTZ Camera Wired Security 10X Zoom Outdoor Security Camera

1 Piece
MOQ
5MP Motion Detection IP CCTV Video Surveillance System Bullet PTZ Camera Wired Security 10X Zoom Outdoor Security Camera
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: VH-NP5010-B01
Warranty: 1 Year
Special Features: Motion Detection, PTZ, Waterproof / Weatherproof
Sensor: CMOS
Style: PTZ bullet camera
Function: NIGHT VISION, Waterproof / Weatherproof
Video Compression Format: H.265
Data Storage Options: NVR
Application: Outdoor
Customized support: Online technical support, Customized logo, OEM, ODM
Product name: 5MP 10X zoom PTZ bullet IP camera
Resolution: 2592 x 1944(5MP)
Lens: 5.1~51mm (10X optical zoom)
SoC: Hi3516E
Image Sensor: 1/2.8" Progressive Scan CMOS Sony IMX335
IR Distance: 100m
Pan & Tilt Range: Pan: 0~180°, tilt: -45°~ 45°
Pan & Tilt speed: 30°/S & 30°/S
Video Compression: H.265/H.264/MJPEG
Informazioni di base
Model Number: VH-NP5010-B01
Termini di pagamento e spedizione
Packaging Details: 1PC/inner box, 39 x 19x 15CM, 1.75KG; 12PCS/carton, 56 x 42 x 61CM, 21.2KG.
Descrizione di prodotto

Metal housing IP66 100m IR 5MP 10X zoom PTZ bullet network CCTV camera

Product Description

5.0MP 1/2.8” Sony IMX335 CMOS sensor

Up to 2592 x 1944 resolution

10X optical zoom

4PCS IR LEDs + 2PCS laser lights, up to 100m IR distance

Rapid focus

Metal body construction, IP66, IK10

Specification

Camera
Model No. VH-NP5010-B01
SoC Hi3516E
Sensor 1/2.8“ CMOS 5MP Sony IMX335
Output pixel 2592 x 1944/15fps(Settable and up to 30fps) 1920 x 1080/25fps
Lens F=5.1~51mm, 10X optical zoom motorized auto focus(4X version is optional)
Communcation Protocol TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, HTTPS, P2P
Video Compression H.265/H.264/M-JPEG
BLC Support
AGC Auto/manual
WB Auto/manual/indoor/outdoor
DNR 2DNR, 3DNR
WDR ≥79dB
S/N Ratio ≥50dB
Audio Optional
Audio Compression G711, PCM
PoE Optional
TF Card Slot /
Software Control IE, CMS, management platform, App
Mobile App P6SLite (iOS & Android)
PTZ
Rotation Range Pan: 0~180°, Tilt: -45°~45°
Rotation Speed Pan: 30°/S, Tilt: 30°/S
Auto Flip Horizontal: 180°, Vertal: 93°
Presets 220
A-B Scan Scan speed 1~9 level settable
Patrol Scan 3 partols, up to 16 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Scheduled Task A-B scan, 360° scan, patrol(patrol1~4 are selectable), pattern scan(patern scan 1~4 are selectable), support max. 6 tasks
Autamatic Calibration Yes
Quick Command Pelco instruction set
IR
Auto Control IR LED PWM
LED 4PCS IR LEDs + 2PCS laser lights
IR Distance 100m
Support Ambient Light Detection IR illumination on 1~9 level selectable
Genral
Language English, Chinese
Power DC 12V 3A
Material Metal housing, IP66
Working Temperature -40~+60°C
Working Humidity ≤95%
Protection Level IP66 Standard, IK10, 6000V lightning protection, surge protection and voltage transient protection
Dimensions 306mm (L) x 184mm(H)
Weight 1.6KG
Package
Inner Box 1 piece/inner box, 39 x 19 x 15cm, G.W. 1.75KG
Carton Box 12 piecs/carton, 56 x 42 x 61cm, G.W. 21.2KG

Packaging & Shipping

Packaging: Surrounded by foam(some models are wrapped in plastic bag also), then in giftbox(inner box) and several pieces in a carton box, some models in carton box directly.

Shipping: Express (TNT, DHL, FedEx, UPS, EMS, etc), Air, Ocean

A. If the weight is under 100KG, it can be sent by express or air

B. If the weight is over 100KG, we recommend sending them by Ocean

Shipping Notice:

In order to make your goods arrive betimes, please make sure your name is complete, shipping address is detailed, post code and phone number are correct.

Company Information

Shenzhen Vanhua Technologies Co., Ltd. is a professional IoT (Internet of Things) solution provider with video as the core, providing security, visual management and big data service for the world. Our main products include IP camera, AHD camera, NVR, DVR, decoder, VMS and so on.

Our advantages:

1. One-stop IoT and video surveillance solution supplier. We offer solution, supply product and installation guidance according to client's demand and budget;
2. Good quality and competitive price;
3. OEM, ODM and small order are available.

FAQ

Q1. What kind of service can you provide?

A: Hardware and software OEM/ODM service


Q2. How can I check the product quality?
A: 1. Online demo is available, please contact us, we will show you during our working time
2. You can buy a sample for quality test, sample time 3-8 working days after payment confirmed
3. We have online store, we can sell single product to you, online payment supported
4. We will attend some show at your local place at some time, please contact us for more details

Q3. What is product warranty?
A: 2 years for cameras (Keyboard for 1 year)

Q4: What if there is defective product?

A: Principle:"To decrease loss for both sides"
1. Remote Support first
2. If remote support can not work,
2-1. For small QTY, we will deduct the cost in the next order
2-2. For large QTY, we will accept return of items
2-3. If item return,to save the cost of shipping,we advise sending back parts that defective
3. We are cooperative to help solving the problem even it is not our fault
4. More details, please contact us

Q5: Time for production and delivery?
A: 1. Sample 3-8 working days, mass production 7-15 working days
2. Delivery time: Via Express delivery, 3-7 working days

Q6: How to place an order?
A: Most of our products in Alibaba are RTP(ready to ship), and Trade Assurance Order is available, so buyers in some areas can start order directly, if can't, please send below info to us:

1. Enterprise name or individual name
2. Address with zip code, telephone (or cellphone) number, tax number (for some areas)
3. Model No. and quantity which you decide to order, and detailed info if you have any special requests
